○ Unique shock absorption and noise reduction mechanism ( Patent No.: ZL 201120226949.5) prevent clash between metal parts during operation. Noise is greatly reduced to max. 68 dB;

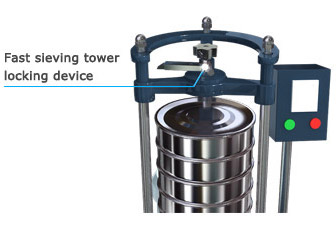

○ Quick locking device in sieve cover ( Patent No.: ZL201120226905.2. Operator only need to pull the handle to lock the cover, easy and safe;

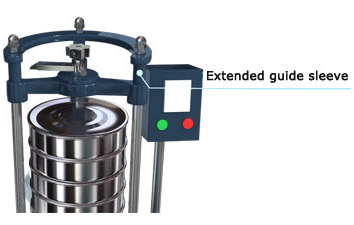

○ Sieve cover have self-locking device      ( Patent No.: ZL201120226923.0). Operator only need to pull sieve cover to the right position, it will be locked automatically.		○ Lengthened guide sleeve of sieve cover pedestal      (Patent No. ZL 201120226878.9), convenient to draw the sieve cover ;
○ Horizontal shaking and vertical vibration are available;		○ Adjustable standing foot for multiple ground installation.

○ Integrated design of control mechanism and mainframe.

Application:

TRNS Standard Sieve Shaker is designed to sieve particulate matter in the field of power industry, coal, fuel & chemical processing, metallurgical industry, food industry, and geological industry, etc.

Specifications:

Sieve dimension (mm): 200*50
Max. layer of sieve: 8
Sieve size(mm): 6-0.045
Loading capacity (g): 200
Power requirement: 380V, 50/60 Hz
Max. power (kW): 0.55
Equipment weight (kg): 120
Equipment dimension (mm): 500*500*920
